6000RPM Sycotec Spindle Dual Tables PCB Router for MCPCB Boards PCB Router Features:
Solution for stress free depanelization
Fixture-based highly efficient dust vacuum system
Clean and precise depanelization for densely populated PCBs
Advanced image-processing software offers point-and-click operation for programming router paths
Automatic alignment compensation by CCD camera
User-friendly operation
Extended bit life by automatic router bit depth adjustment
Improved tact time
Low maintenance required
Reasonable price
Calibration free linear robot
PCB Router Benefits
There is no better way to depanel a printed circuit board than with our PCB Router. This PCB depaneler is the answer for hassle-free PCB depaneling through the employment of a router bit that minimizes stress on components. The high speed spindle included in the machine speeds up cutting and maintains precision, while also allowing for flexible panel designs with various cutting patterns. Our PCB depaneler will also cut down on bit replacement with our router bit depth adjustment system, which automatically shifts up to 5 depth levels. The PCB router bit maximum cutting speed is 50mm per second, while the traveling speed is a maximum of 800mm per second. With a built-in fixture based dust vacuum system, the system is sure to be clean and efficient. This prevents warping, and takes full advantage of vacuum strength for the most effectual dust collection.
Easy Operation of PCB Router
Easy to operate, the image processing software of the PCB router makes it simple to program cutting paths with point-and-click technology, whereas it also automatically compensates for alignment with a CCD camera. With the simple touch of an external button PCB depaneling can be started promptly for easy operation, and through the easy to use pre-programming mode, the operation of the machinery is made even more undemanding. The PCB depaneler is also very low maintenance, as the machine is designed for easy access and repairs. Frame structure and the spindle motor operate on an X, Y and Z axis, while ceramic bearing is integrated to provide 60,000rpm for spins.
Cost Effective of PCB Router
With the variety of benefits that our depaneling systems offer, and the ease in which the machinery can be operated, the price is undeniably practical. Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.
PCB Router Specification:
I. Hardware |
|
SPINDLE | KAVO spindle(Model:4025) |
CCD | Sony 520 line industrial cameras |
LENS | Computar EX2C |
Screw | TBI Precision ground ball screw imports |
Guide | HIWIN widening Imported linear guide rail |
MOTOR | JiaBao LCF Series |
I/O CONTRONL CARD | HFC PCI-9074 |
DRIVER CONTRONL CARD | HFC PCI-9074 |
I/O CARD | PCI-9074-64pcs/-38pcs |
Static cleanup | STATIC-ST401A Series |
Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
Machine interface | AOC LCD17",Logitech mouse |
2. software |
|
Control system | Windows XP Professional (Service3,v.3244) |
Operation GUI | English Windows XP |
Program edit | Inline |
Vision system | CCD AOTU offset |
Control system | F 1.2.88 version |
Overall | |
Dimensions(W*D*H) | 1280mm*1450mm*1480mm |
Weight | 750KG |
Height offset | 60~110mm |
Manipulator | |
Motor type | JiaBao series |
Positioning repeatability | 0.001mm |
Axis working area(max) | 890mm*560mm*50mm |
Work station | |
PCB fixation | standard,specialization |
PCB loading/unloading | manual |
PCB size (max) | 450*350mm |
PCB thick (max) | 5mm |
Fixturing | |
Rigidity fixturing | Customized make fixture |
Fixturing fixation | machinery |
Spindle Motor | |
Power | 150W |
Spindle | 60000rpm/min |
Protect | self/wind cooling |
Change cutter | Specialization |
Routing capability | |
Cutting speed(max.) | 80mm/s |
Driving speed(max.) | 2500mm/s |
Precision of cutting | 0.01mm |
Vacuum System | |
Vacuum power | 3.5KW AC 380V |
Vacuum | plumb |
Utilities | |
Power | 2.0KW AC380V |
Air supply | 4-6KG/cm2 |
Programming | |
Program edit | Inline |
Function edit | Line,arc,circula,U-curve |
Program storage | HDD |
Vision system | SONE colour CCD |
milling cutter offset | AUTO |
Vacuum setup | AUTO |
Operation Monitors | |
Iindicator | Iindicator Machine state |
tool check | Automatic detection tool life, the use of time testing |
Motor protect | Have overheating, overload, low voltage protection function |
motor over loading check | Have Overload, the line is normal, low voltage protection function |
Tool usable time | Automatic detection tool life, |
Data statistic | Separate board model, separating count, diverse counting methods |
Error record | Software automatically records all alarms memory of machines |
III. Accuracy | |
Axis precision | 0.001mm |
Cutting precision | 0.1mm |
IV. Safety | |
Working area protect | With four sealed protection |
Door sensor | Front and rear safety door micro-switch sensor (optional) |
Exigency stop button |

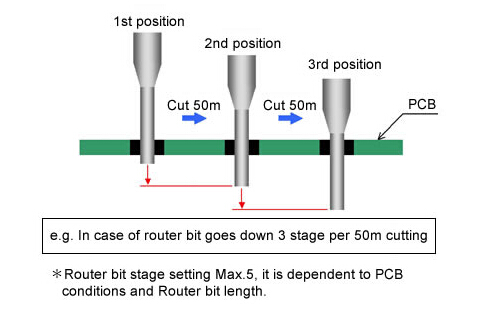

Packaging Photos of PCB Router and Routing bit setting for longer life time:
