| Brand Name : | Chuangwei PCB Depanelizer |
| Model Number : | CWVC-5 PCB Depanelizer |
| Certification : | CE certificate |
| Price : | Negotiable |
| Payment Terms : | Western Union, T/T, cash, credit card |
| Supply Ability : | 8 sets / month |
| Delivery Time : | 10 work days |
| MOQ : | 1 set |
High Speed PCB Depanelizer with Multi-blades Cutting Pcb LED Panel,PCB Cutter Specification:
Maximum board length : unlimited
Board thickness :0.6-5.0mm
Plate feeding speed : 300-500mm/s
Blade material :SKD11
Working temperature : 10-35℃
Storage temperature :-20-50℃
Voltage : 220 /110 V
Dimension : 2200 mm*630 mm*1150mm
High Speed PCB Depanelizer with Multi-blades Cutting Pcb LED Panel,PCB Cutter Features of machine:
1) The machine adopts the computer screen control with a counting device , which you can use to preset the processing production . And the space of cutting tool is visible on the screen .
2) It can cut many boards with multiple sets of knives work at the same time
3) The knife flywheel is adjustable as a whole from 0 to 5mm
4) The distance between knives is regulable as well , applying to pcb with width from 15mm to 20mm .
5) The blade is made of imported high speed steel material , which is durable and have a long service life 6) It is convenient to adjust the cutting speed through rotary knob .
7) No limits of the cutting length .
8) Thickness range of pcb : 0.2-5.0mm
9) With a conveyor belt line , the separated pcb can be send out directly to reduce pick- and-place .
10) The machine adopts multiple blade to separate boards with simple operation and high efficiency , fitted for batch production.

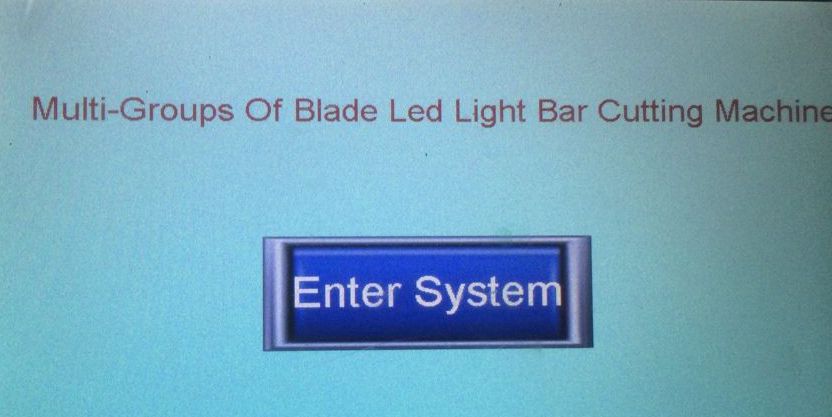

LCD control:
