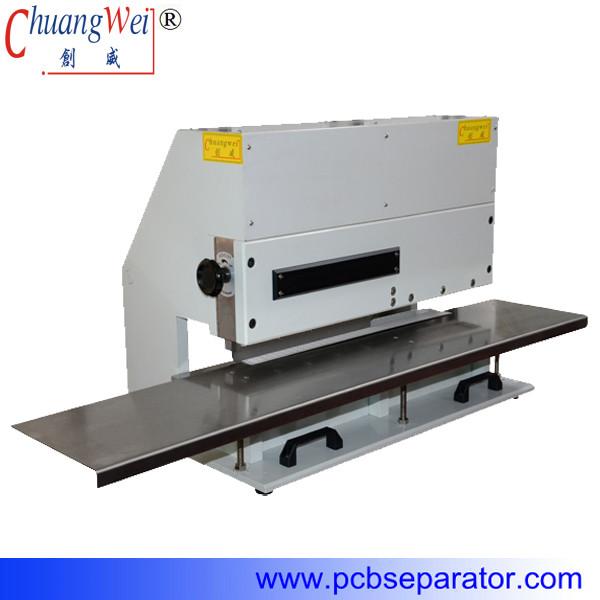

Pneumatic V Groove PCB Depaneling For Unlimit Length PCB / Alumiinium CWVC-3
The most professional PCB shearing machine manufacturer in China.
V-CUT PCB shearing machine
1.Max. PCB shearing length is unlimted
2.Shearing PCB without bending and tension stress
3.Safety use, easy operation
4.Shearing process without vibrations
V-CUT PCB shearing machine specifications:
| Model | CWVC-3 |
| Max. PCB shearing length | unlimited |
| PCB shearing thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB shearing speed | due to operator skilled level |
| PCB shearing machine size | 780x500x620mm |
| PCB shearing machine weight | 185Kg |
V-CUT PCB shearing machine features:
1.The machine was designed to shear pre-scored PCB carefully,
without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not
be damaged by the shearing process, or thin board even to 0.3mm can
be worked safely.
3.Shearing process without vibrations.
4.PCB shearing control method is by pneumatic-driven and
electromagnetic valve.
5.PCB control operation is that operator stamps the foot pedal to
shear PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
