| Brand Name : | Chuangwei PCB Shearing Machine |
| Model Number : | CWV-1A |
| Certification : | CE certificate |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, L/C, MoneyGram |
| Supply Ability : | 800 sets / year |
| Delivery Time : | 3 work days after receive the payment |

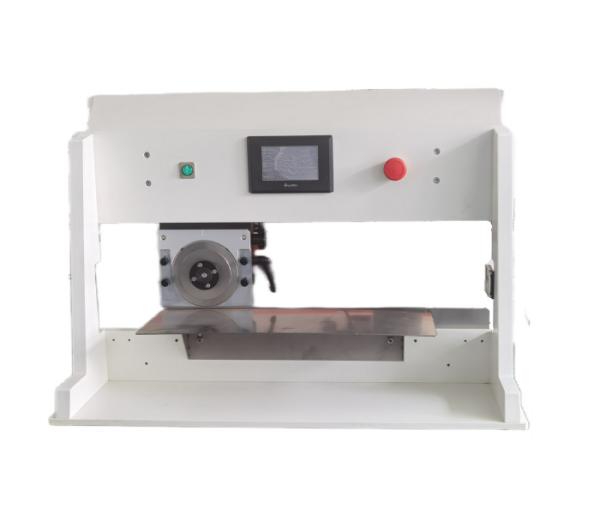

Four Optional Speed PCB Depaneling Machine With Lcd Display And Safe Sensor CWV-1A460
pcb separator specification :
| Pcb Separation Machine size | 77*51*45CM |
| Max. pcb cutting length | 460mm |
| cutting speed | 100/200/300/500mm/s |
| cutting thickness | 0.6-3.5mm |
| Pcb Separation Machine weight | 90 kg |
Pcb Separator Features CWV-1A460.pdf :
After soldering the plate of connecting pieces , it often hurts
lines or breaks the electronic parts when breaking . This machine
cuts with feed mode to reduce stress drastically , prevent the
solder joint and parts from cracking and improve the productivity
and quality .
With circle knife above and anvil blade below , when the board flow
to the anvil blade , shift the switch , and the anvil blade move
laterally tto he set point , then the PCB board is cut off with
smooth incision and no burrs .
The forward and stop point can be set according to the plate length
when feeding , the stop point for artificial setting .
The tailgate depth range : unlimited . The largest plate cutting
width : unlimited , the maximum cutting length : 500mm , the plate
thickness : 0.2-5.0mm . The thickness between V groove : 0.25-2.0mm
.
The upper and lower knives is made of imported high-speed steel
material , which are durable and can be regrinded .
The machine can be in supporting use of a complete set of conveyor
belt , which is convenient for the cut PCB to be send out
automatically .
The feed distance of the knife wheel is from 0 to 500mm ( the tool
length can be customized ) . The height of the knife wheel is
fine-tuning from 0 to 2mm so that it is suitable for PCB of various
kinds of thickness and the depth of V-CUT groove . The height of
work station is regulable from 0 to 50mm .
The accumulated cutting performance is displayed for the purpose of scheduling preventive maintenance of the blade .
Why us
1.Engineers available to service machinery oversea. | Engineers are available to be sent to freign countries to do
machinery training and offer technical support. |
2.Mature technique & forerunner to process makes high quality
machinery. | As largest manufactory in South China, we have 12 years experience
on PCB separator machines and soldering machines. pcb router
machine Our R&D team continuously upgrade the existing machines to meet
the market development trend. |
3.Effective customer service. pcb router machine | All of us together are stronger and wiser than any one of us
individually. To succeed, we must assume responsibility, cooperate
with fellow associates and withdepartments, effectively comminicate
with one another, foster enthusiam and participate in
decision-making. To be seay reachable by customers and provide
prompt replies to solve their problems and create value for
customers. |
4.One year warranty for the machines except accessories. b router
machine | Robust frame construction and Japanese steel blades obtained good
appraise and recognized by and oversea clients. We offer parts for
replacement under warranty free of charge, clients only need to
bear freight charge. |
Our mission: | Ongoing PCB industry PCB separator technological innovation, to
create greater value, allowing customers to success |
Our Vision: | PCB industry to become the world's leading solution providers PCB
separator. pcb router machine |
CE Approval
we're professional, and we usually do the best solution for you.
|
|
