Automatic PCB separator machine cutting 460mm length pcb

PCB Separator machine advantages :

1. Easy maintanance and operation
2. Low bending stress,no vibration
3. specially for resin substrate PCB with pre-scored V groove

4. safety use

PCB Separators Specifications :

V-CUT PCB separator features :

1 . Firm machine structure be designed to prevent electronic circuit , solder point , and solder cutting area of PCB from damage by unsuitable force .
2 . Effectively reduce stress and prevent solder point chap from PCB cutting .
3 . PCB cutting speed can be adjusted by the rotary knob
4 . PCB cutting stroke can be set free and setting value can be showed in LCD
5 . Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
6 . Optional PCB conveyor belt to remove finished PCB cut


Contrast of Cutting Edge

Smooth Cutting Edge(by CWV-1A) Coarse Cutting Edge(by hand)

PCB Cutting Capability

Maximum PCB Cutting Length(mm):460 or 600
Maximum PCB Cutting Thickness(mm):3.5

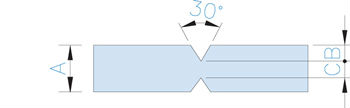

A:PC Board Cutting Thickness(mm):0.6~3.5
B:Minimum V-CUT Size(mm):0.25
C:PC Board V-CUT Fillister Thickness(mm):0.3~0.8

Company Information :

From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kind PCB cutting machine type for manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB cutting machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
Any interest please contact us freely

Chuangwei PCB cutting machine

why us

Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support

Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.

One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge

Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
