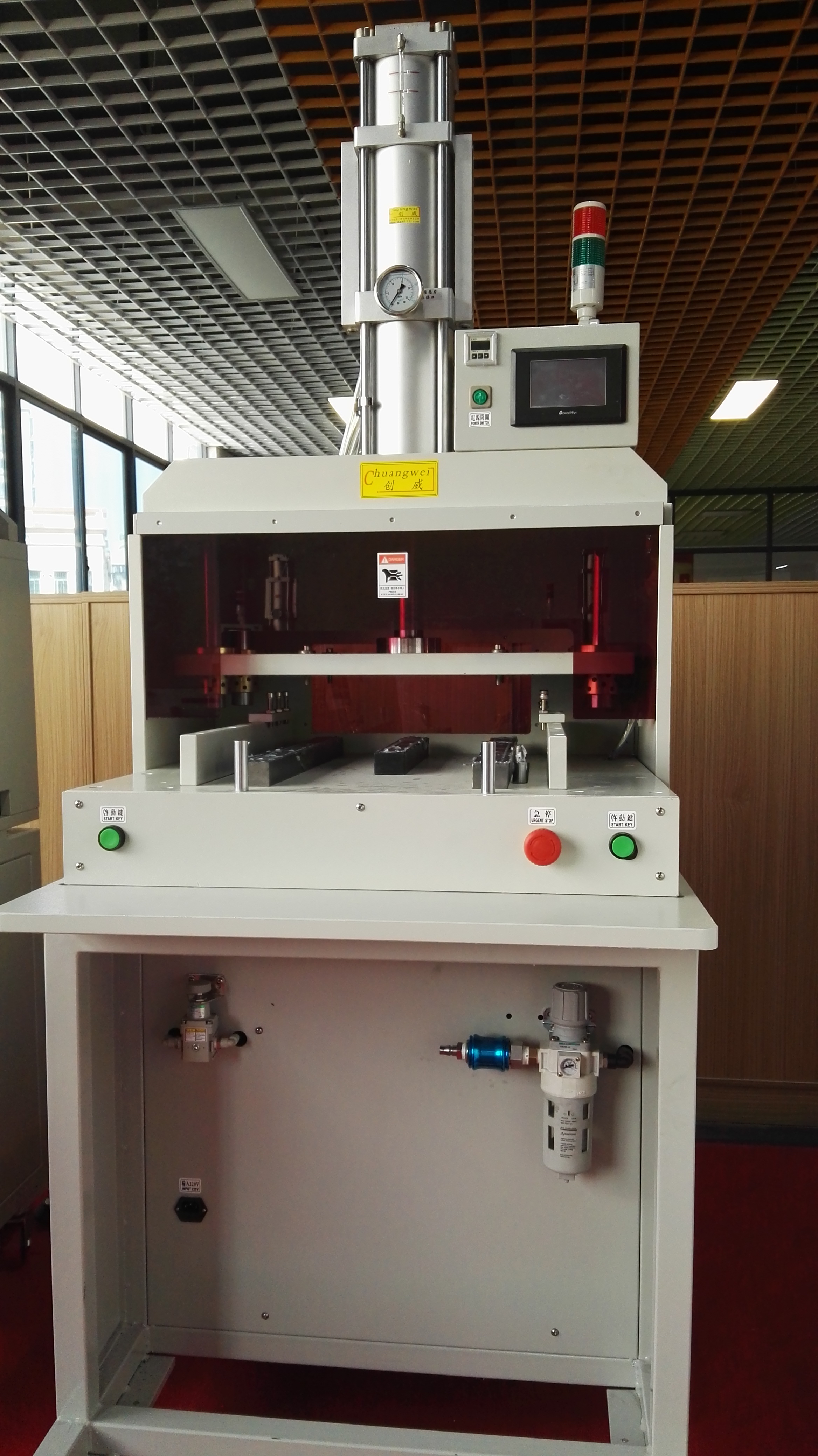

FPC PCB Punchinig Machine PCB Punch for Iphone Motherboard SMT Line
Specification:
| model | CWPE |
| Punch Contribute (T) | 3 (can custom made up to 30T) |
| Working area (mm) | 330*220 (can custom made) |
| Voltage(V) | 110/220 |
| Working air pressure(Mpa) | 0.5-0.7 |
| fpc/pcb punching machines size (mm) | 730*810*1700 |
| fpc/pcb punching machines weight (kg) | 530 |
Detail:
1. Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb.
2. Use punching mould to cut with high efficiency.
3. Can replace multiple mold for production and mold changing
easily.
4. The operation is simple and safe.
Feature:
1. Machine has strong structure and moves easily with 4 Casters.
2. can replace a variety of mold, and mold changing easily.
3. the lower mold automatic in and out, easy to pick and place
products, finished products can fall into the drawer.
4. mould and die can be made according to customer's request.
5. make internal stress generated by PCB cutting to minimize and
avoid tin stress cracking.
6. punching cutting semi-finished PCB with high efficiency.
Competitive advantage:
1. pcb&fpc punching machine CWPE with LCD display for operator set working program.
2. pcb&fpc punching machine CWPE can set punching times and total times through LCD.
3. pcb&fpc punching machine CWPE warning with red line and automatic stop while punching times up to operator set before working.
4. pcb&fpc punching machine CWPE automatically warn operator to clean the platform.
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do
machinery training and offer technical support
Mature technique & forerunner to process makes high quality
machinery.
As largest manufactory in South China, we have 12 years experience
on PCB separator machines and soldering machines. pcb routerOur
R&D team continuously upgrade the existing machines to meet the
market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good
appraise and recognized by and oversea clients. We offer parts for
replacement under warranty free of charge, clients only need to
bear freight charge
