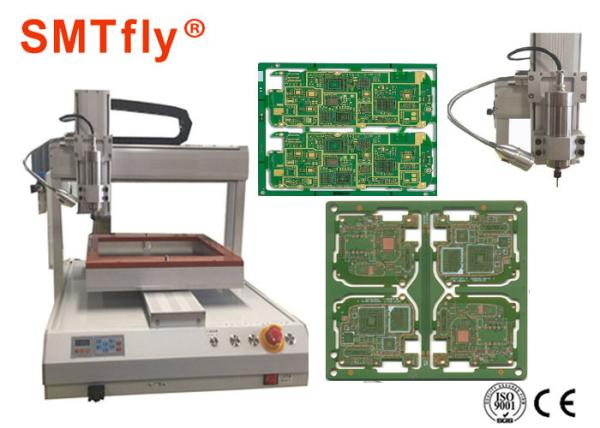

50000 rpm Spindle Desktop PCB Router Machine 650mm X 450mm Working Area Desktop PCB Router, CWVC-3A
ChuangWei offers a wide choice of PCB routers including 2 desktop models that are available for 650*450mm panels. Universal fixtures & custom fixtures are available to meet customers' requirements. Only loosen 2 screws for a new fixture set-up and no risk of an operator making the wrong set-up.
Desktop PCB Router Features SMTfly-3A
Desktop Robots
Programming using a user-friendly teaching pendant with large. No need to learn complicated programming languages.
The vacuum system for the Down Vac version sits under the board support fixture for removing debris and dust.
50,000 rpm spindle motor
Repeatable accuracy ±.01mm
2 models available up to a work area of 650mm x 450mm
Store up to 100 programs or 6000 work points on the memory card resident in the router.
ChuangWei will design and build your fixtures
For in-line applications, a floor type routing system is available
Desktop PCB Router Specification:
| Motor drive system | Servo/stepper motor |
| Spindle speed | 50000RPM |
| Cutting performance | 500mm/s |
| Drive system repeatability | ±0.02mm |
| Cutting speed | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution | ±0.01mm |
| PCB positioning | fixture |
| Load and unload way | Manual |
| PCB thickness | 0.4mm-4mm |
| Working area(X, Y, Z) | 650x450x100mm(could be customized made) |
| Motor power | 0.5KW |
| Motor speed | 3000RPM |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 950*800*750mm |
| Machine weight | 92KG |
| Vacuun Cleaner | Yes |
why choose us
1. Engineers available to service machinery oversea
Engineers are available to be sent to foreign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high-quality machinery
As the largest manufactory in South China, we have 12 years of experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrades the existing machines to meet the market development trend.
3.Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm, and participate in decision-making. To be reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except for accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and overseas clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
◇ 10-day delivery
◇ 24 hours fast response
◇ Largest manufactory in South China
◇ 100% responsible for the quality
◇ 18 years experience
◇ Free sharpening for blades within 3 months
◇ Controlled drawings make strict confidentiality for clients
|
