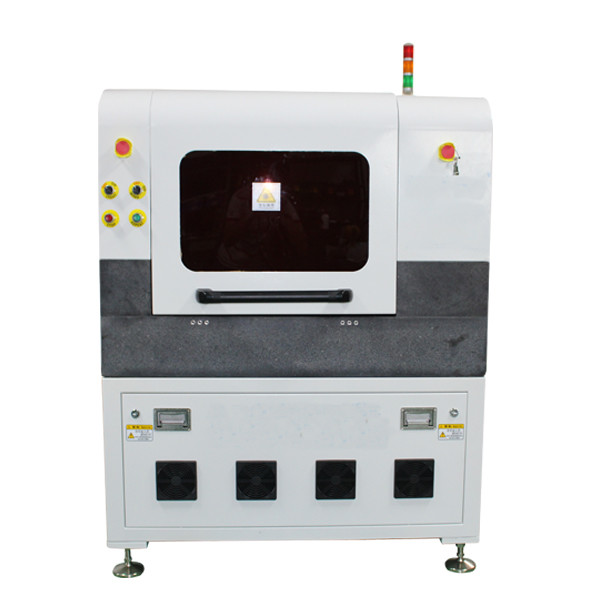

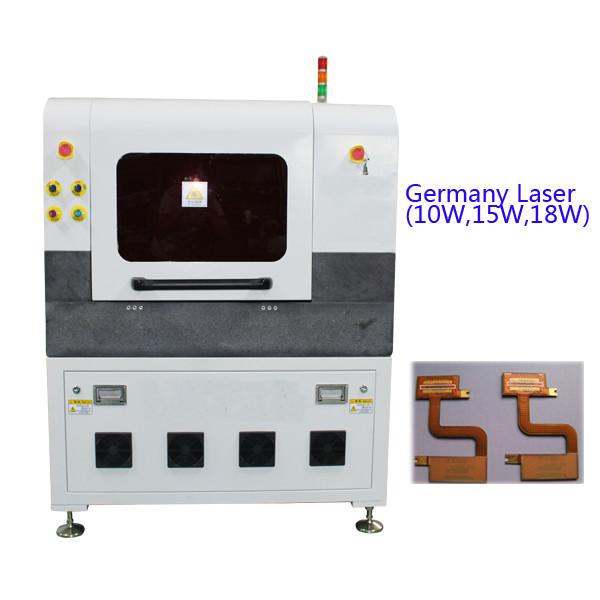

    18W 355nm SMT Inline Stationary Laser Depaneling Machine Stress Free

    Ask Lasest Price
    Brand Name : SMTfly
    Model Number : SMTfly-5L
    Certification : CE
    Price : Negotiable
    Supply Ability : 800 sets per year
    Delivery Time : 2 Months
    • Product Details
    • Company Profile

    18W 355nm SMT Inline Stationary Laser Depaneling Machine Stress Free

    Stress-Free Depaneling with 18W UV Laser Head without Tooling Cost


    Laser Singulation:


    SMTfly-5L Laser Singulation Machine combines innovative technologies to provide the flexibility of a traditional bit router with the speed of a singulation press in one completely stress-free, dust-reduced laser depending solution.


    Stress-Free Depaneling:


    Utilizing a laser for the depaneling process means cutting is achieved with-out making contact with the PCB. Cutting without contact means there is no stress to the PCB or to the delicate components on that PCB.

    No stress to the PCB or components ensures there are no failures due to stress cracks resulting in increased quality and performance of end products.


    Stationary Laser Assembly:


    The stationary laser assembly guarantees a cut that is consistently accurate. The focal point of the beam will not move and the laser accuracy never degrades with machine and motor wear.


    Significant Dust Reduction:


    Laser routing provides significant dust reduction over traditional cutting with a router bit or a saw.

    Significant dust reduction means there is no secondary process step required to remove dust left by the depaneling process.

    No dust means no foreign material on the PCB or end product that can cause failures or contamination.

    Dual Shuttle In-Feed:


    The dual shuttle in-feed provides speed, flexibility and accuracy. It provides the ability to run one PCB very fast or the flexibility to run two different programs simultaneously. The cycle time is less than 2 seconds for the PCB shuttle process. Running two products simultaneously reudces changeover time to zero.


    All Axes Utilize High Precision Linear Motors:


    Every machine movement is extremely fast and accurate due to all axes using high precision linear motor technology.


    Specification:


    LaserQ-Switched diode-pumped all solid-state UV laser
    Laser Wavelength355nm
    Laser Power10W/12W/15W/18W@30KHz
    Positioning Precision of Worktable of Linear Motor±2μm
    Repetition Precision of Worktable of Linear Motor±1μm
    Effective Working Field400mmX300mm(Customizable)
    Laser Scanning Speed2500mm/s (max)
    Galvanometer Working Field Per One Process40mmх40mm
