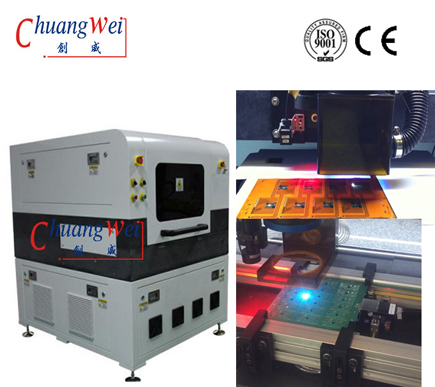

    380V Smooth edge Uv Laser Cutter , 355nm Laser PCB Depaneling Machine

    Ask Lasest Price
    Brand Name : SMTfly pcb depaneling
    Model Number : SMTfly-5S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 260 sets per month
    Delivery Time : within 3 work days
    • Product Details
    • Company Profile

    380V Smooth edge Uv Laser Cutter , 355nm Laser PCB Depaneling Machine


    Laser PCB Depanelizer Machine for Neat and Smooth Edge Cutting Advantages of Laser PCB Depaneling/Singulation


    • No mechanical stress on substrates or circuits
    • No tooling cost or consumables.
    • Versatility – ability to change applications by simply changing settings
    • Fiducial Recognition – more precise and clean cut
    • Optical Recognition before PCB depaneling/singulation process begins.
    • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
    • Extraordinary cut quality holding tolerances as small as < 50 microns.
    • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

    Description:


    Neat and smooth edge, no burr or overflow

    Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.

    Laser wavelength: 355nm

    Rated power: 10W/12W/15W/18W@30KHz

    Galvanometer working field Per One Process: 40 × 40mm

    Power consumption for the hole machine: 2KW


    Specification:


    LaserQ-Switched diode-pumped all solid-state UV laser
    Laser Wavelength355nm
    Laser Power10W/12W/15W/17W@30KHz
    Positioning Precision of Worktable of Linear Motor±2μm
    Repetition Precision of Worktable of Linear Motor±1μm
    Effective Working Field460mmX460mm(Customizable)
    Laser Scanning Speed2500mm/s (max)
    Galvanometer Working Field Per One Process40mmх40mm
