| Brand Name : | SMTfly Pcb cutting machine |
| Model Number : | SMTfly-1A pcb cutting machine |
| Certification : | CE and GMC |
| Price : | Negotiable |
| Payment Terms : | T/T,paypal, cash |
| Supply Ability : | 1000 sets / year |
| Delivery Time : | within 3 days after receive the payment |
| MOQ : | 1 set |

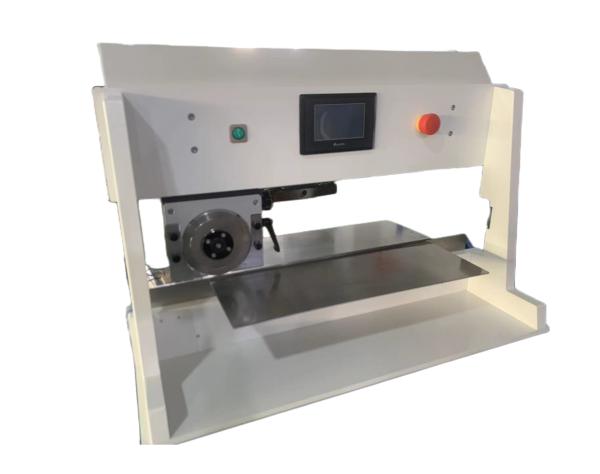

1200mm Length FR4 Precision Cutting Machine,PCB Depaneling
Available PCB length:
SMTfly-1A460: cutting length up to 460mm
SMTfly-1A600 : cutting length up to 600mm
SMTfly-1A1200 : cutting length up to 1200 mm
PCB Separator machine advantages :
1. Easy maintanance and operation
2. Low bending stress,no vibration
3. specially for resin substrate PCB with pre-scored V groove
4. safety use
PCB Separators Specifications :
| Model | SMTfly-1A |
| Max. PCB cutting length | 460 or 600 mm ( on request custom made ) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100 , 200 , 300 , 500 mm / sec |
| Blades type | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110 / 220v |
| PCB cutting machine size | 770 * 510 * 450 mm |
| PCB cutting machine weight | 55 kg |
V-CUT PCB separator features :
1. Separate pre-scored PCB assembly without stress on either PCB or
component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade
prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to
fit different groove depth and compensates for blade wear out
Video :
http://www.youtube.com/watch?v=kgQcXtUbpbw [ SMTfly-1A460 ]
http://www.youtube.com/watch?v=PMTN8RPocfA&feature=youtu.be [ SMTfly-1A600 ]
Company Information :
From 2004 we started to develop, manufacture, sell, service for PCB
cutting machine, until now,we have produced different kind PCB
cutting machine type for manual,motor-driven,pneumatic-driven,mold
punching,milling cutter router.
You can depend on your company's condition and choose the most
suitable one.
Also We can manufacture PCB cutting machine base your actual
requires. (any shape,length,thickness of PCB,aluminium PCB,LED
strip,solar energy PCB,FR4 and soft material FPC etc.)
